HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching

Name: HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching
Brand: HXCP
Price: 27200 USD

Wholesale HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching from china suppliers

Packaging Details : Stretch Film with Wooden Case

Brand Name : HXCP

Paper Width : 145-340mm

Double-Sided Cutting Width : 140-335mm

Weight (Stitcher/Folder & Delivery) : 345kg

Supply Ability : 3 sets/month

Double-Sided Cutting Length : 98-238mm

Min Product Size : 145×100mm

Double-Sided Cutting Thickness : 5mm

Weight (Double-Sided Cutting) : 358kg

Price : USD 27200 per set

Payment Terms : D/P, D/A, T/T, L/C

Max Product Size : 340×240mm

Binding Speed : Max 4000 times/h

Binding Thickness : 0.2-2.5mm

Double-Sided Cutting Speed : Max 2800 times/h

Paper Length : 200-480mm

Front Cutting Width : Max 340mm

MOQ : 1 set

Weight (Front Cutting) : 170kg

Dimensions : 4700×950×1000mm(L×W×H)

Speed with Cover : Max 2800 times/h

Place of Origin : China

Front Cutting Thickness : 5mm

Delivery Time : 20 work days

Folding Thickness : 0.2-2.5mm

Front Cutting Length : 95-238mm

Front Cutting Speed : Max 3500 times/h

Contact Now

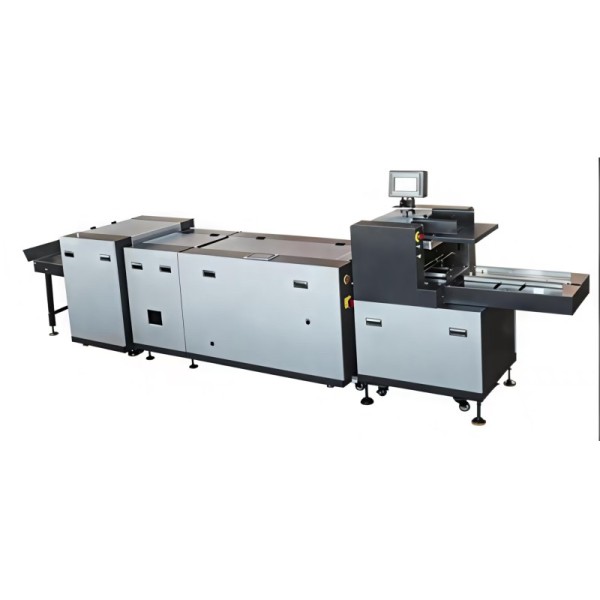

HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching

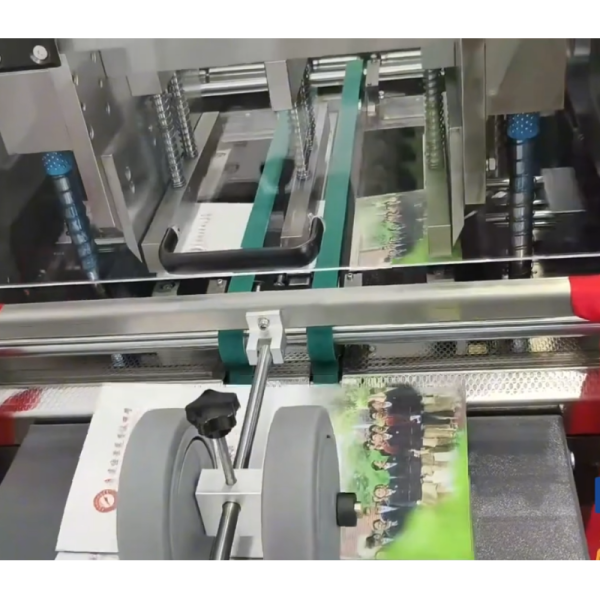

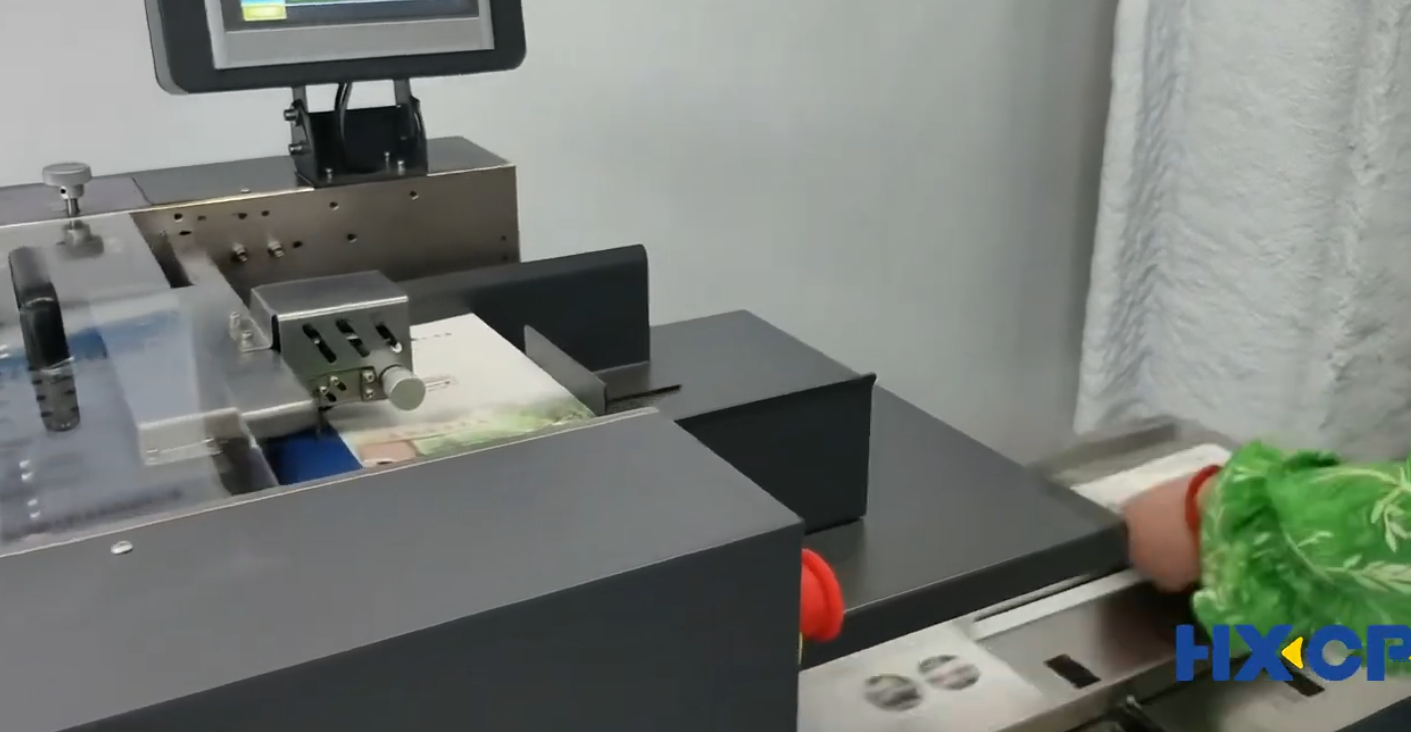

The HX480P Covering Stitching Trimming Machine seamlessly integrates cover feeding, saddle stitching, folding, flat pressing, and 3-side trimming into a single automatic production line. Built on a heavy-duty steel frame, it utilizes servo-driven synchronized feeding and smart automated adjustments for stitching heads and cutting sizes. Combining a dedicated flat press with high-precision front and double-sided trimming mechanisms, the HX480P operates at up to 2800 cycles/hour. It minimizes setup time while consistently delivering perfectly finished booklets tailored for modern digital print environments.

HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching

Product Tags:

HX480P saddle stitching machine

high precision notebook stitching machine

exercise book trimming machine with warranty

HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching Images
