HXP40E Fully Automated Box Forming Device Connecting With Downstream Packaging Conveyor

Name: HXP40E Fully Automated Box Forming Device Connecting With Downstream Packaging Conveyor
Brand: HXCP
Price: 11000 USD

Wholesale HXP40E Fully Automated Box Forming Device Connecting With Downstream Packaging Conveyor from china suppliers

Air Compressing : 6-8kg/cm³

Supply Ability : 10 sets/month

Carton Size : L(250-450)×W(150-400)×H(100-400)mm

Model Number : HXP40E

Adhesive Tape Width : 55-72mm (Choose one type)

MOQ : 1 set

Delivery Time : 30 work days

Carton Opening Speed : Up to 10-12 cases/min

Brand Name : HXCP

Air Consumption : 450NL/min

Payment Terms : L/C,D/A,D/P,T/T

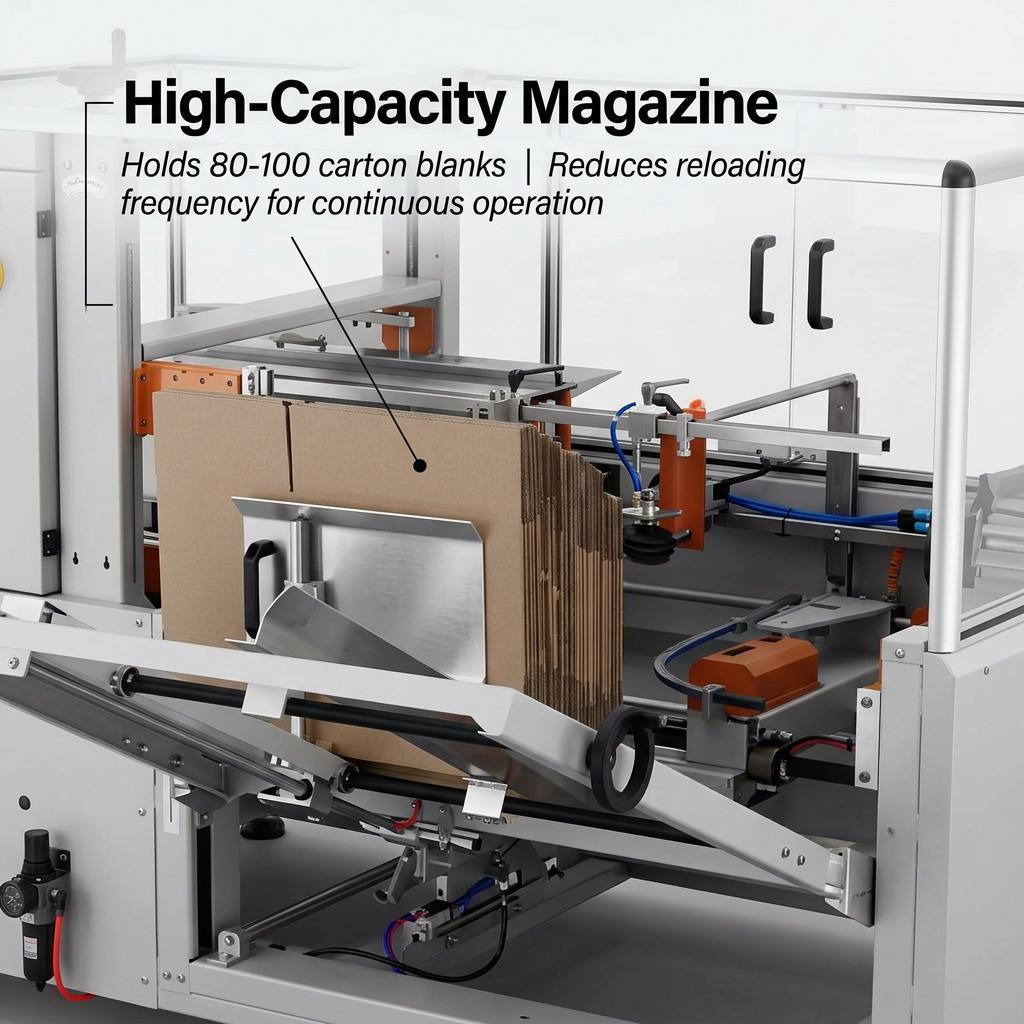

Carton Storage Quantity : 80-100pcs (800-1000mm)

Price : USD 11000 per set

Power Supply : 220V 50/60Hz 1 Phase

Certification : CE

Power : 240W

Place of Origin : China

Packaging Details : Stretch Film with Wooden Case

Contact Now

HXP40E Fully Automated Box Forming Device Connecting With Downstream Packaging Conveyor

HXP40E Fully Automated Box Forming Device Connecting With Downstream Packaging Conveyor For Auto Box Unfolding, Folding and Tape Sealing Work

Product Overview

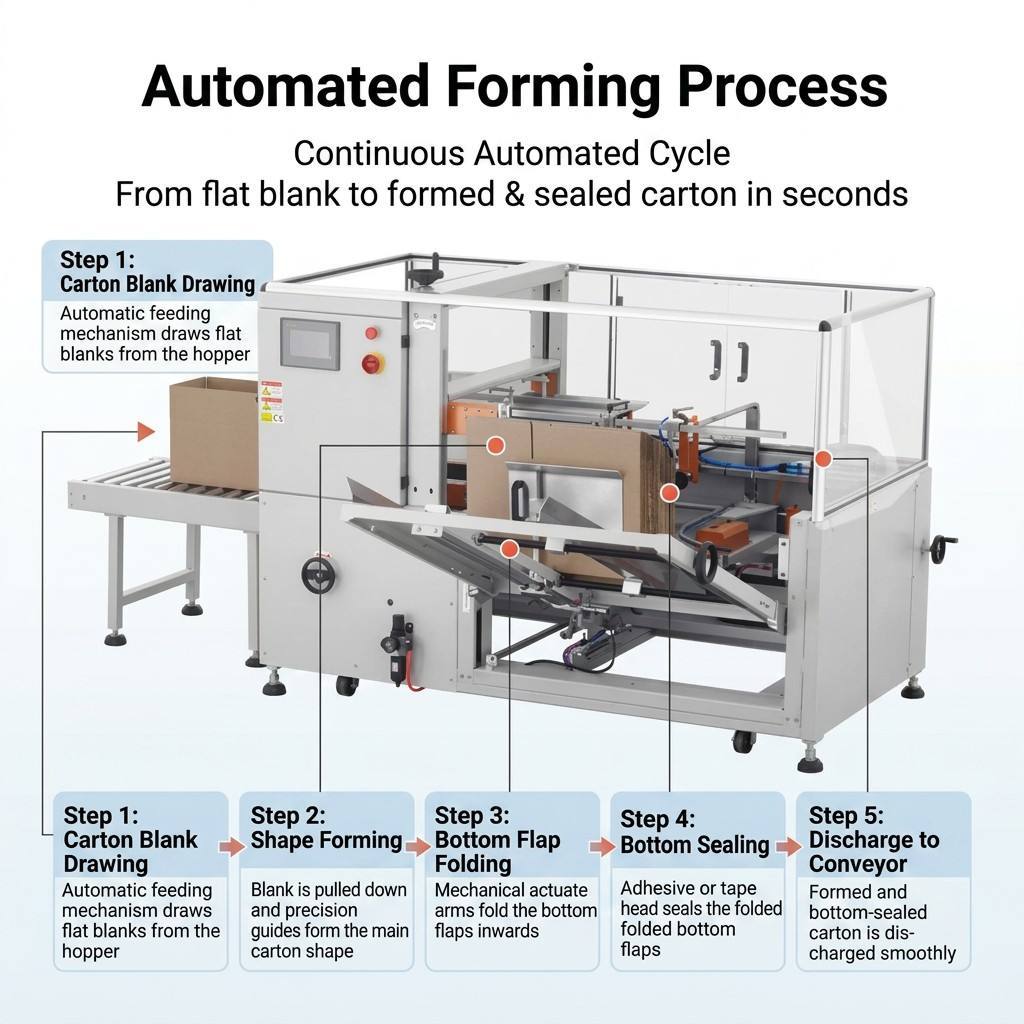

The HXP40E Automatic Carton Forming Bottom Sealer is a fully automated packaging equipment designed to simplify and standardize carton pre-packaging procedures. It realizes a complete unmanned working cycle: automatically picking flat carton blanks from the material magazine, shaping flat sheets into standard carton structures, sequentially folding bottom flaps in place, and applying adhesive tape for firm bottom sealing.

After finishing forming and sealing, the completed empty cartons are automatically discharged to the downstream conveyor for subsequent packaging procedures. With continuous cyclic operation, the machine achieves a maximum working speed of 12 cartons per minute, delivering stable and high-efficiency carton forming and bottom sealing performance for automated packaging lines.

Application Scenarios

Printing and packaging factories: automatic forming and bottom sealing of product packaging cartons
E-commerce logistics warehouses: continuous empty carton preparation for product packaging and shipment
Industrial automated packaging lines: front-end carton unfolding and shaping supporting equipment
Consumer goods manufacturing plants: batch carton forming processing for finished product packaging
Large-scale packaging workshops requiring standardized and high-speed carton pre-forming work

Core Advantages

The continuous cyclic working mode eliminates intermittent stagnation in traditional manual carton preparation, greatly optimizing the overall packaging workflow. Sequential flap folding and professional tape sealing structure ensure stable and reliable carton bottom tightness, avoiding loose bottoms during subsequent filling and transportation. With excellent line compatibility, the machine can be flexibly integrated into various automated packaging systems. Its high-speed and stable operation effectively improves workshop packaging throughput and standardizes production processes.
